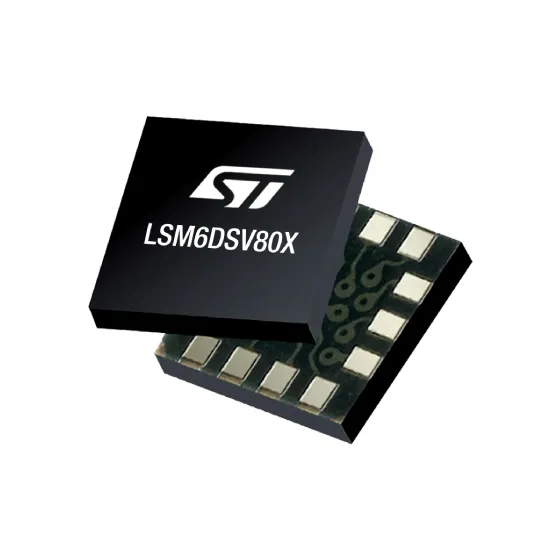

LSM6DSV80XTR

LSM6DSV80XTR

0.00
0.00


  • Dedicated and independent gyroscope, low-g and high-g accelerometer channels, and data processing

  • Smart FIFO up to 4.5 KB

  • Dual accelerometer channels

    • Low-g channel ±2/±4/±8/±16 g full scale

    • High-g channel ±32/±64/±80 g full scale

  • ±250/±500/±1000/±2000/±4000 dps full scale

  • SPI / I²C & MIPI I3C® v1.1 serial interface with main processor data synchronization

  • Programmable finite state machine for high-g and low-g accelerometer, gyroscope, and external sensor data processing with high rate @ 960 Hz

  • Machine learning core with exportable features and filters for AI applications

  • Embedded adaptive self-configuration (ASC)

  • Embedded sensor fusion low-power (SFLP) algorithm

  • Embedded temperature sensor

  • Independent I/O supply

    • I²C voltage range: 1.62 V to 3.6 V

    • SPI / MIPI I3C® extended voltage range: 1.08 V to 3.6 V

  • Supply current

    • 6-axis configuration @ 0.67 mA in combo high-performance mode

    • 9-axis configuration @ 0.80 mA in combo high-performance mode

  • Compact footprint: 2.5 mm x 3 mm x 0.83 mm

  • ECOPACK and RoHS compliant
